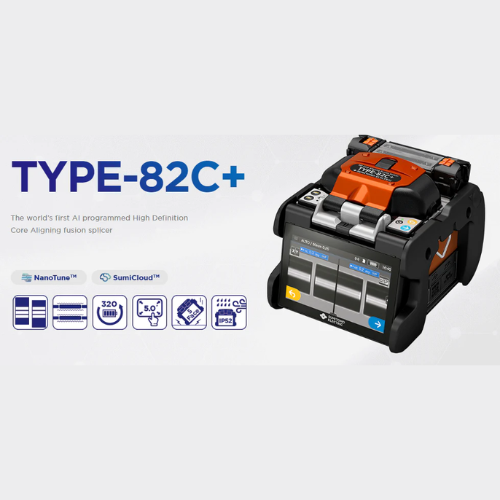

Sumitomo T-82C+ Core Alignment Single Fusion Splicer Splicing Machine with Fiber Cleaver.
$500.00
The Sumitomo T-82C+ (also known as Type-82C+) is a high-performance, core-alignment fusion splicer enhanced by AI-driven NanoTune™ technology. It’s engineered for ultra-fast, precise splicing across a broad spectrum of fiber types and can withstand demanding field conditions.
Package Accessories:
Fusion Splicer T-82C+
Battery Pack BU-16
Battery Charger
AC Adapter ADC-16
AC Power Cord
USB Cable (Mini-B)
SD / SDHC Memory Card
Spare Electrode ER-10
V-groove Cleaning Brush VGT-2
Alcohol Dispenser
Carrying Case with Worktable CC-72
Hand Strap
Quick Reference Guide
Cooling Tray
Technical Description:
NanoTune™ AI alignment for optimal, low-loss results even with imperfect cleaves
Splice times: ~5 sec (Quick Mode), ~7 sec (SMF Standard / Auto Mode)
Heating cycle: ~8–9 sec
Compatible with SMF (G.652), MMF (G.651), DSF, NZDSF, BIF, CSF, EDF
Typical splice loss: 0.01 dB (SMF/MMF), ~0.03–0.034 dB (DSF/NZDSF)
Proof test force: ~1.96 N
Dual CMOS cameras with up to 380× (zoom 760×) or 270× in dual-axis view
5″ high-resolution color touchscreen with intuitive UI and onboard training videos
Rugged design: water-resistant (IPx2), dust-resistant (IP5x), drop-tested (76 cm), operates up to 50 °C and 6000 m altitude
Lightweight and portable: ~1.9 kg (unit only); ~2.2 kg with battery
Battery supports ~300 splice and heat cycles
Wireless LAN for remote maintenance and SumiCloud™ connectivity
Software upgrades via internet
Up to 300 splice programs and 100 heating profiles
Internal memory for 200 images and 10,000 splice data (expandable with SD card)
Technical Details:
Technical Specifications
| Category | Details |
| Fiber Compatibility | SMF (G.652), MMF, DSF, NZDSF, BIF, CSF, EDF |
| Fiber Size Range | Cladding: 80–150 µm; Coating: 100–1000 µm |
| Typical Splice Loss | SMF/MMF: 0.01 dB; DSF/NZDSF: ~0.03–0.034 dB |
| Splicing Time | Quick: 5 s; Standard/Auto: 7 s |
| Heating Time | ~8–9 s |
| Proof Test Force | 1.96 N |
| Battery Capacity | ~300 splice & heat cycles |
| Weight | 1.9 kg (unit only); 2.2 kg (with battery) |
| Display | 5″ high-resolution color touchscreen |
| Magnification | 380× (single-axis zoom 760×); 270× (dual-axis view) |
| Memory Storage | Internal: 200 images & 10,000 splice data; Expandable via SD card |
| Environmental Rating | Water-resistant: IPx2; Dust-resistant: IP5x; Drop-tested: 76 cm |
| Operating Conditions | Temperature up to 50 °C; Altitude up to 6000 m |
| Connectivity | Wi-Fi enabled (SumiCloud™), Internet updates, Remote maintenance |
| Smart Functions | NanoTune™, Auto Fiber ID, Arc Auto-Calibration, Onboard Training Tutorials |
