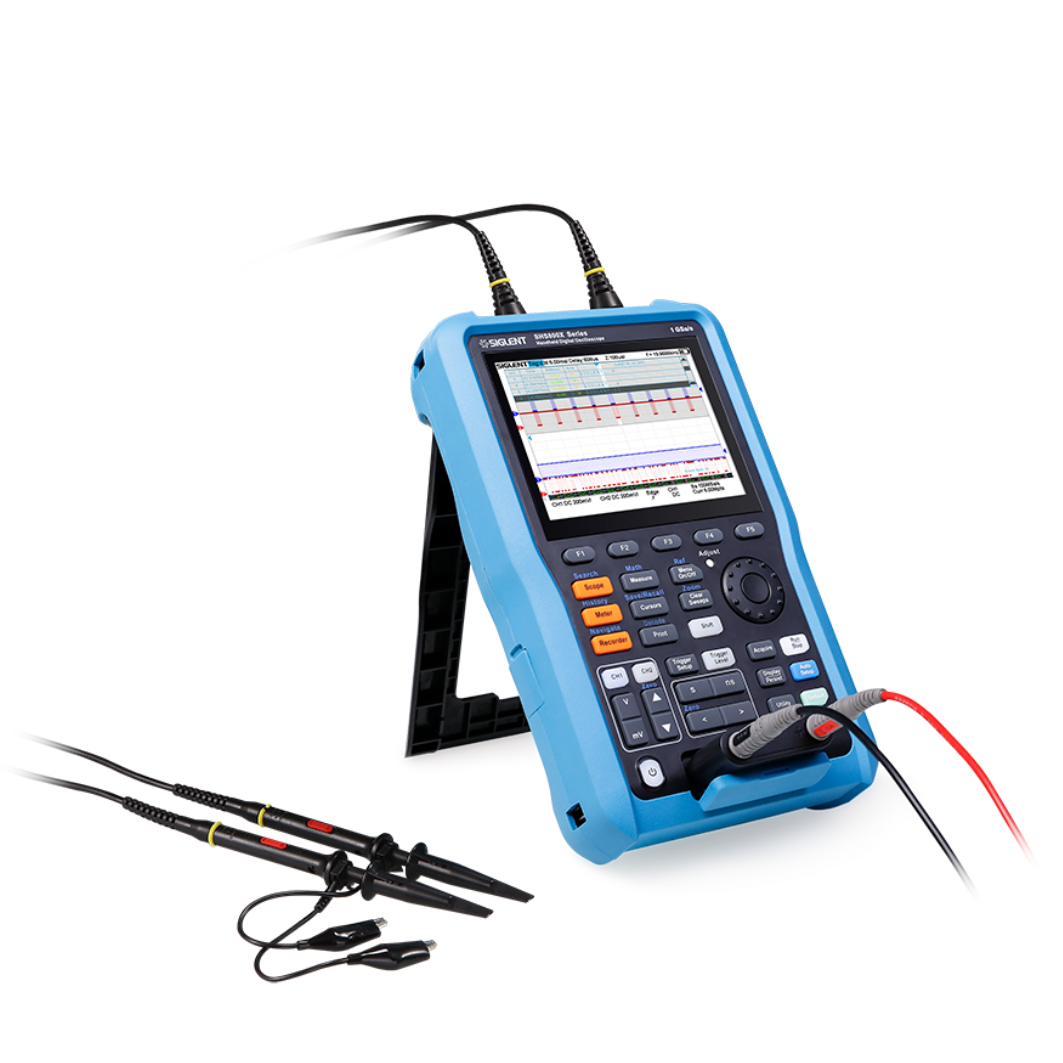

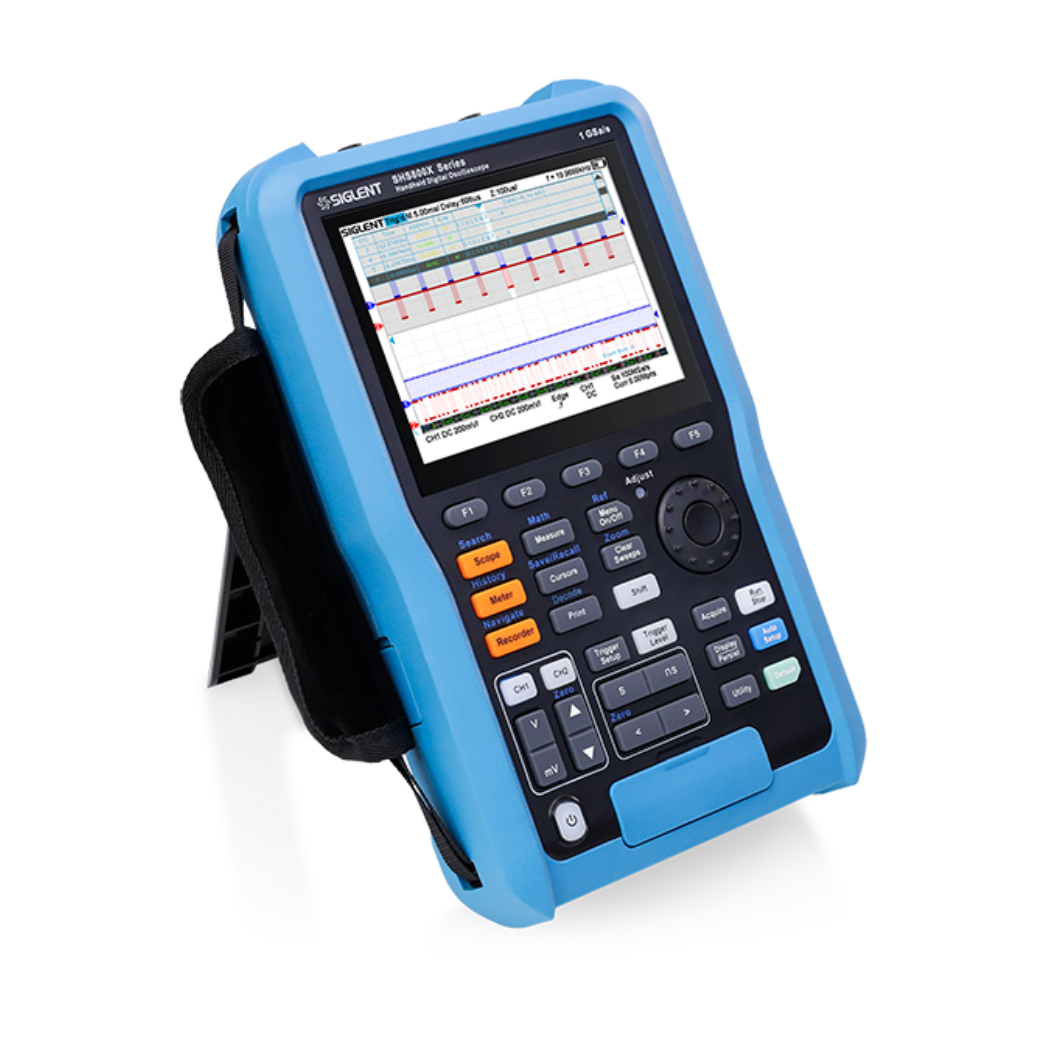

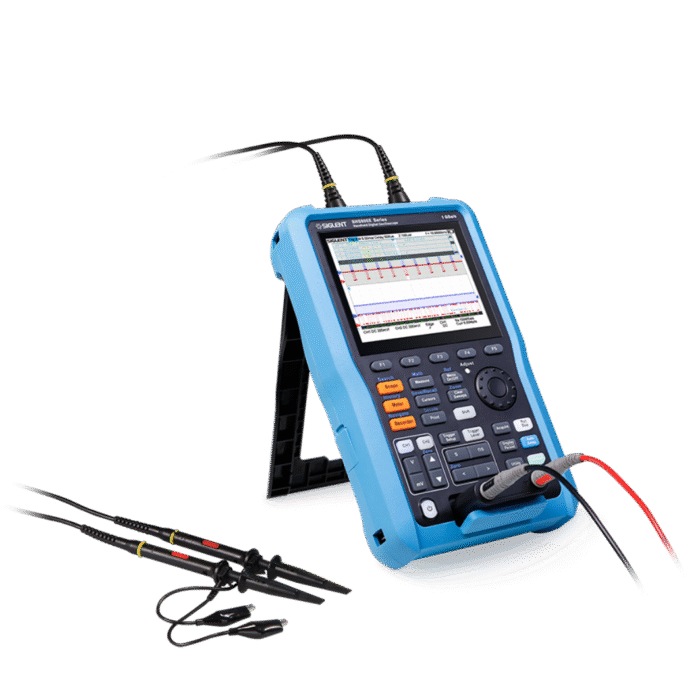

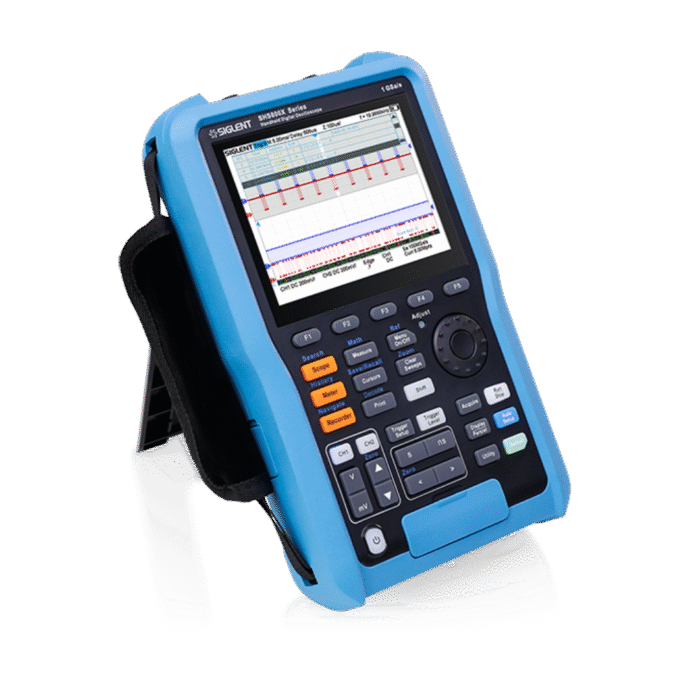

Handheld Digital Oscilloscope SIGLENT SHS820X

SIGLENT SHS820X is a 200 MHz dual channel handheld digital oscilloscope. When two channels are enabled, each channel has a sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is active, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.

The SHS800X series has two non-isolated scope channels and one isolated multimeter channel. The maximum input voltage for oscilloscope analog inputs: CATII 300 Vrms, and the maximum input for the multimeter is CATIII 300 Vrms.

The SIGLENT SHS820X has multiple powerful triggering modes including serial bus triggering as well as free decoding for IIC, SPI, UART, CAN, LIN bus types. The SIGLENT SHS820X also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis.

Another powerful addition is the new 1 million point FFT math function that gives the SHS very high frequency resolution when observing signal spectra. The new digital design also includes a hardware coprocessor that delivers measurements quickly and accurately without slowing acquisition and front-panel response.

The SIGLENT SHS820X features built-in sample and measurement value recorders. The sample recorder can achieve a maximum sampling rate of 25 kSa/s, and can record for up to 22 hours at this sampling rate. The measurement value recorder can simultaneously record 4 sets of measurement values at a recording interval as low as 0.1s which delivers up-to 25 hours of continuous recording.

The SIGLENT SHS820X integrates a 6000 count digital multimeter, isolated from the scope that can measure DC/AC Voltage, DC/AC Current, Resistance, Capacitance, Diodes, and Continuity.

A rechargeable, 6900 mAh lithium battery supports up-to 5.5 hours of work without a charge. The handheld oscilloscopes feature a sealed IP51 dust and drip-proof housing and has been tested to IEC60529 to guarantee the ruggedness that is needed to survive harsh environments. A rubberized surface with large keys also makes it easy to use in difficult environments.

Features

• Bandwidth: 200 MHz.
• Sample rate: 1 GSa/s (single-channel), 500 MSa/s (two-channels).
• The newest generation of SPO technology:
  • waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode);
  • supports 256 level intensity grading and color temperature display modes;
  • record length up to 12 Mpts;
  • digital trigger system.
• Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern.
• Serial bus triggering and decoding (Standard) for IIC, SPI, UART, CAN, and LIN protocols.
• Video trigger/HDTV.
• Low background noise with voltage scales from 2 mV/div to 100 V/div.
• 3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions.
• 8 one-button shortcuts for: Run/Stop, Auto Setup, Default, Measure, Cursors, Display/Persist, Clear Sweep and Print. More function shortcuts available when combined with the shift button.
• Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user.
• History waveform record (History) function (maximum recorded waveform length is 80 000 frames).
• Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions.
• 1 Mpts FFT. Support Peaks and Markers.
• Math and measurement functions use all sampled data points (up to 12 Mpts).
• Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root).
• Preset key can be customized for user settings or factory “default”.
• Supports Multi-language display and embedded online help.
• Security Erase mode.
• Search and navigate function.
• Includes recorder mode: Sample and Measurement Loggers.
• Digital 6000 Digit True RMS Multimeter. Functions:
  • AC/DC voltage;
  • AC/DC current;
  • resistance;
  • capacitance;
  • diode test;
  • continuity test.
• 5.6-inch TFT-LCD display with 640 × 480 resolution.
• Interface types: isolated USB Host, USB Device (MicroUSB -TMC).
• Supports SCPI remote control commands.
• UL2054 certified lithium battery pack, 6900 mAh capacity, external charger.
• IP Rating: IP51.
• Compliance with UL61010-1, UL61010-2-030, UL61010-2-033.
