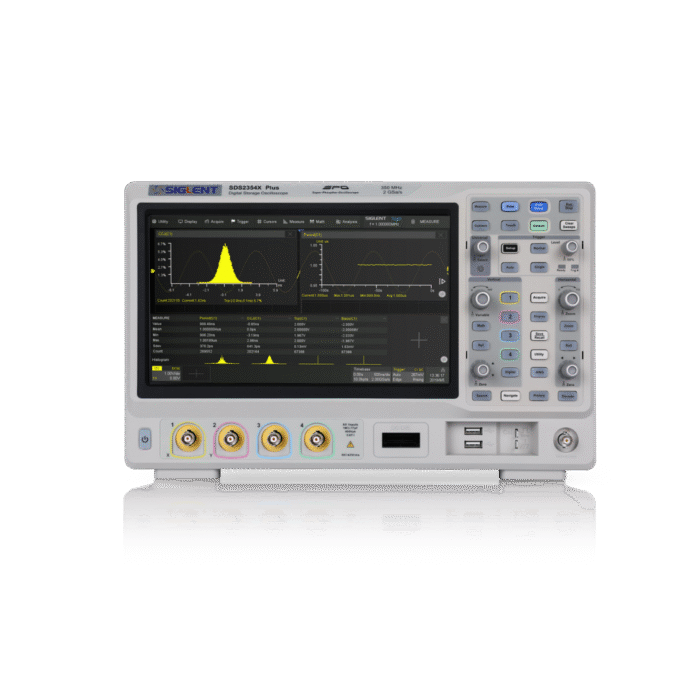

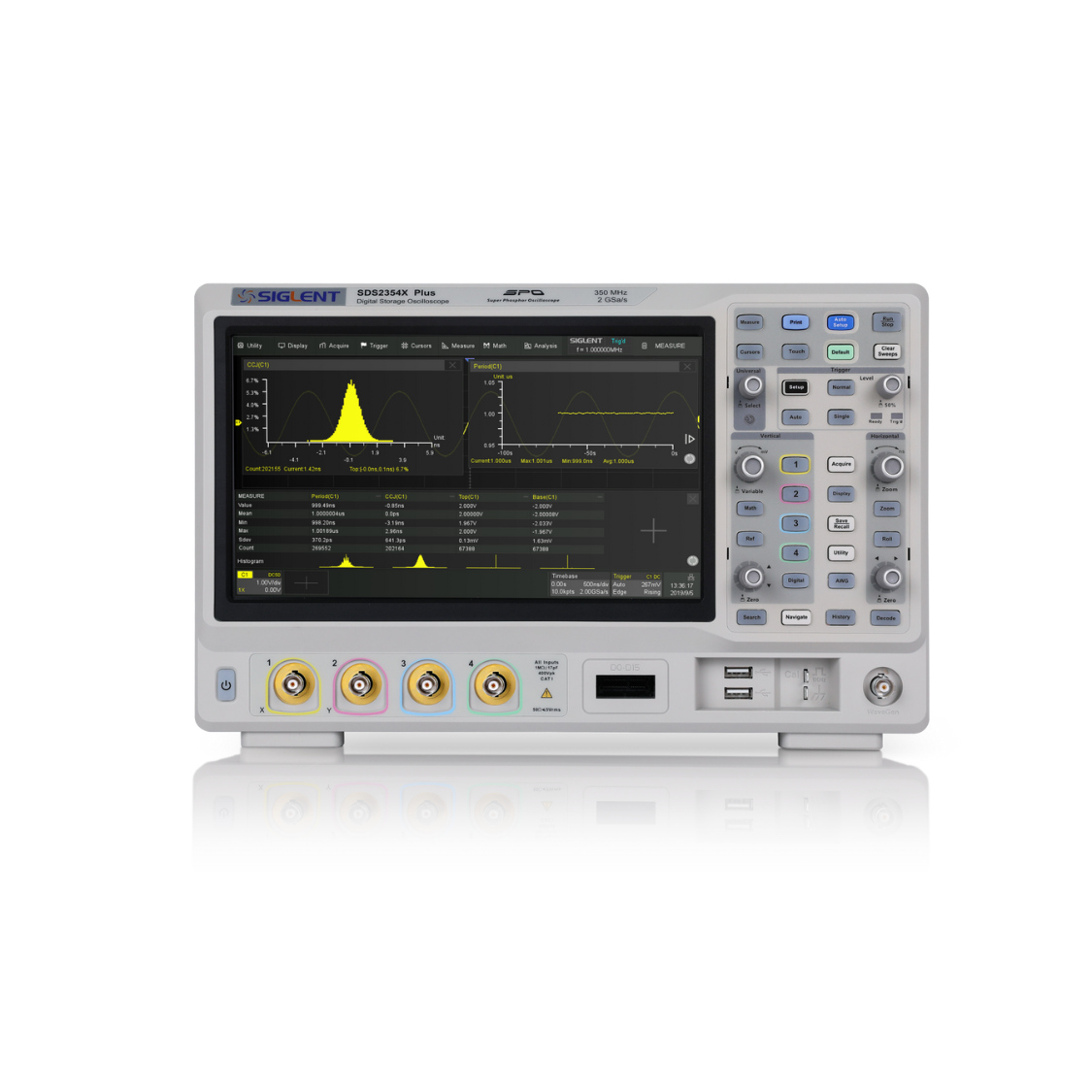

Digital Oscilloscope SIGLENT SDS2204X Plus
$2,555.00
4 channel Super Phosphor Oscilloscop with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1″ display.
| Weight | 5 lbs |
|---|
SIGLENT SDS2204X Plus is a desktop 4-channel Super Phosphor Oscilloscop with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1″ display.
The Siglent SDS2204X Plus employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology.
- Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
- Supports 256-level intensity grading and color temperature display modes.
- DigitaI trigger system.
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
- SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
- Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
- History waveform record (History) function for up to 90,000 triggered waveforms (frames).
- Automatic measurement function on 50+ parameters, supports statistics with histogram.
- Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
- Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
- Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
- External mouse and keyboard support.
- Built-in web server supports remote control over the LAN port using a web browser.
- A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).
